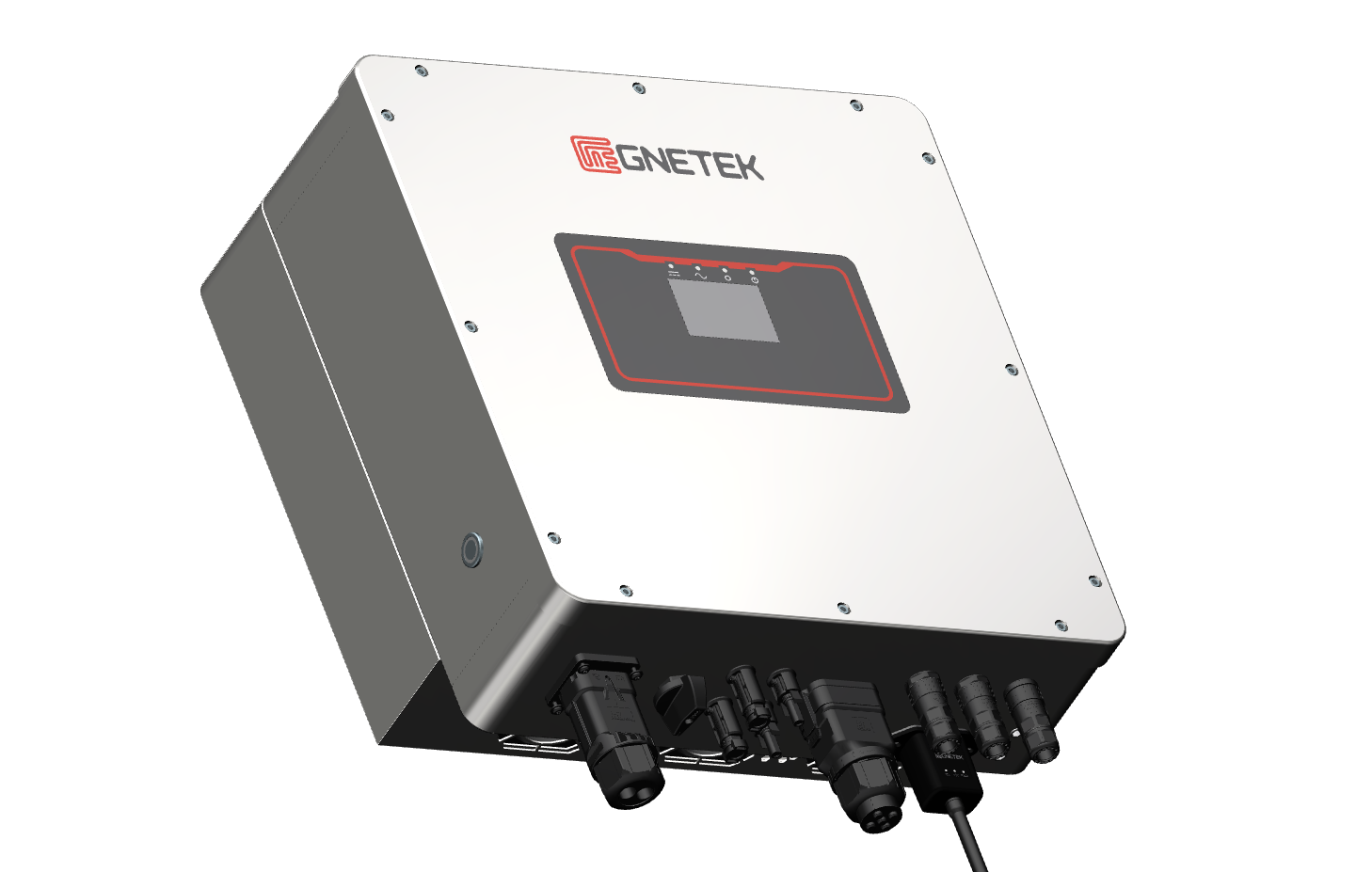

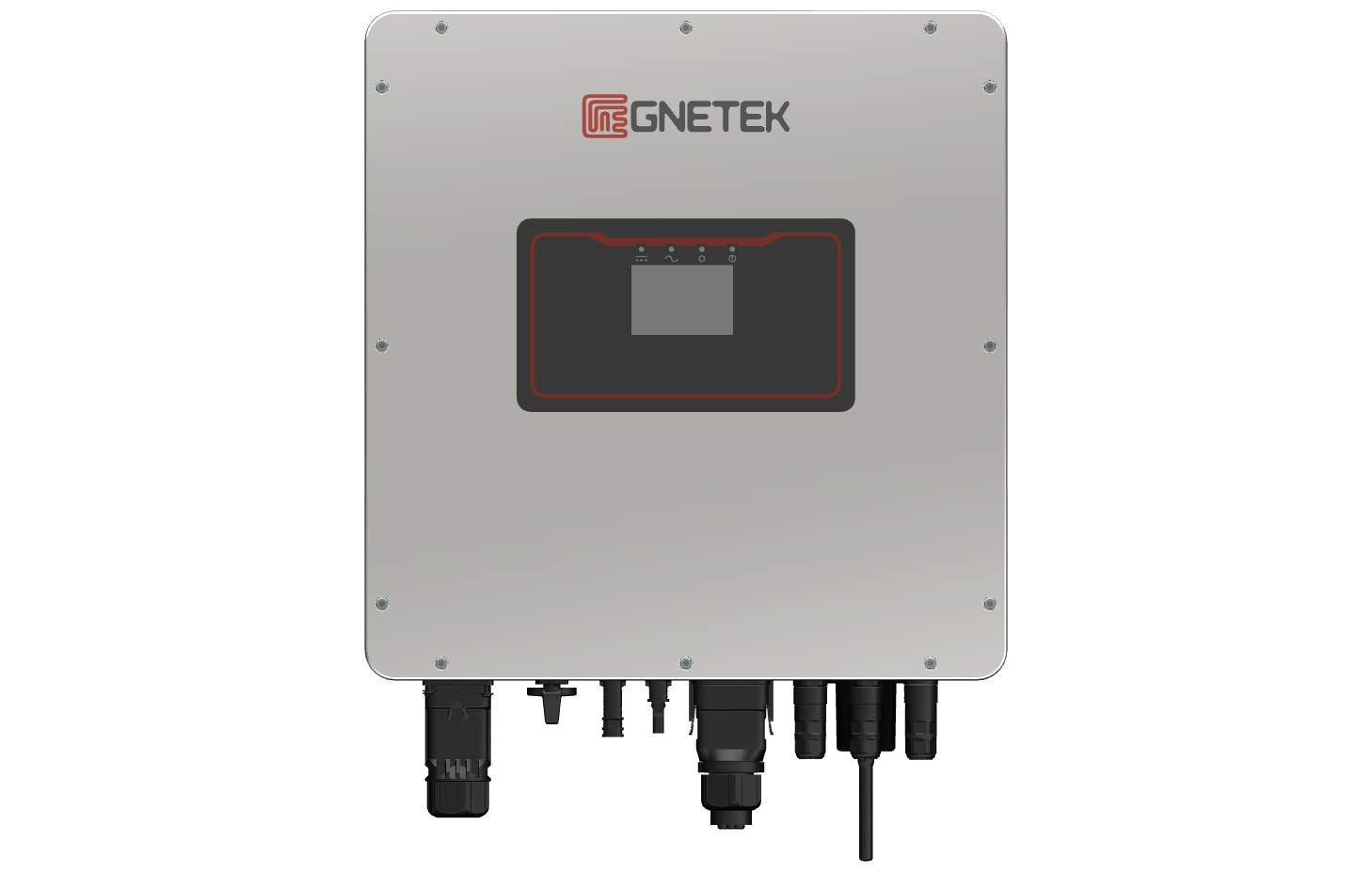

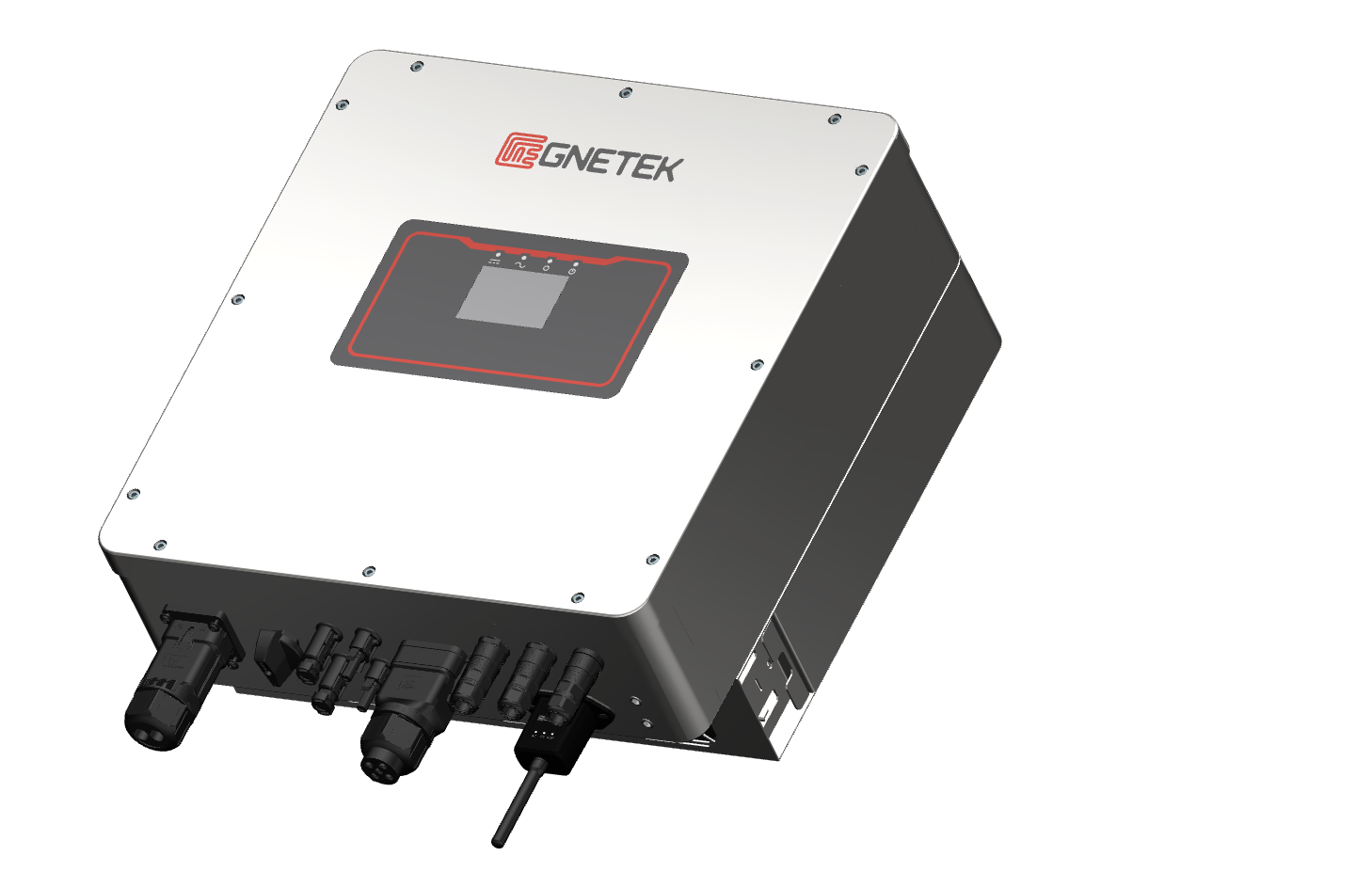

Product Description
Product Features
• Supports up to 16 units in parallel (parallel off-grid mode)
• 6 programmable charging and discharging time periods
• Supports parallel connection of multiple batteries
• Supports AC coupling to retroft existing PV systems
• Supports direct battery charging by diesel generator
• Supports arc detection
Product Features
• Supports up to 16 units in parallel (parallel off-grid mode)
• 6 programmable charging and discharging time periods
• Supports parallel connection of multiple batteries
• Supports AC coupling to retroft existing PV systems
• Supports direct battery charging by diesel generator
• Supports arc detection
ㅤ
ㅤ
Product Documents
| Model | Queenbee-1P3K | Queenbee-1P3.6K | Queenbee-1P5K | Queenbee-1P6K | ||||||
| PV String Input Data | ||||||||||
| Max.PV Input Power(W) | 3900 | 4680 | 6500 | 7800 | ||||||
| Max.PVInput Voltage(V) | 500 | 500 | 500 | 500 | ||||||
| Rated DCinput voltage(V) | 370(125~500) | 370(125~500) | 370(125~500) | 370(125~500) | ||||||
| Start-up Voltage(V) | 125 | 125 | 125 | 125 | ||||||
| MPPT Voltage Range(V) | 150-425 | 150-425 | 150-425 | 150-425 | ||||||
| Full Load MPPTVoltage Range(V) | 200-425 | 200-425 | 200-425 | 200-425 | ||||||
| Max.Operating PVInput Current(A) | 18+18 | 18+18 | 18+18 | 18+18 | ||||||
| Max.Input Short-Circuit Current(A) | 27+27 | 27+27 | 27+27 | 27+27 | ||||||
| No.of MPP Trackers/No.of Strings MPP Tracker | 2 | 2 | 2 | 2 | ||||||
| Number of MPPT strings per channel | 1+1 | 1+1 | 1+1 | 1+1 | ||||||
| AC Input/Output Data | ||||||||||
| Rated AC Input/Output Active Power(W) | 3000 | 3600 | 5000 | 6000 | ||||||
| Maximum AC output active power(W) | 3300 | 3960 | 5500 | 6600 | ||||||
| Rated AC Input/Output Current(A) | 13.7/13.1 | 16.4/15.7 | 22.8/21.8 | 27.3/26.1 | ||||||
| Max.ACInput/Output Current(A) | 15/14.4 | 18/17.3 | 25/24 | 30/28.7 | ||||||
| Max.ContinuousACPassthrough (grid to load)(A) | 35 | 35 | 35 | 40 | ||||||
| Peak Power (off-grid)(W) | 2 Times of rated power, 10s | |||||||||
| Power Factor Adjustment Range | 0.8 leading-0.8 lagging | |||||||||
| Rated Input/Output Grid Frequency/Range | 50/60Hz;L/N/PE 220/230Vac(Single phase) | |||||||||
| Grid Connection Form | Single Phase | |||||||||
| Total Current Harmonic Distortion THDi | THD<3%(Linear load<1.5%) | |||||||||
| DC Injection Current | <0.5%ln | <0.5%ln | <0.5%ln | <0.5%ln | ||||||
| Efficiency | ||||||||||
| Max.Efficiency | 97.60% | 97.60% | 97.60% | 97.60% | ||||||
| Euro Efficiency | 97.00% | 97.00% | 97.00% | 97.00% | ||||||
| MPPT Efficiency | >99% | >99% | >99% | >99% | ||||||
| security protection | DC Polarity Reverse Connection Protection, AC Output Overcurent Protection, ACOutput Overvoltage Protection, AC Output Short Circuit Protection, Thermal Protection, DC Terminal Insulation Impedance Monitoring, DC Component Monitoring, Ground Fault Current Monitoring, Power Network Monitoring, Island Protection Monitoring, EarthFault Detection, DC Input Switch, Overvoltage Load Drop Protection, Residual Current(RCD)Detection, Surge Protection Level, | |||||||||
| General Data | ||||||||||
| Operating Temperature Range | ’-40~+65°, >45°Derating | |||||||||
| Cooling method | Intelligent air cooling | |||||||||
| Noise | ≤30dB | |||||||||
| Communication Interface | RS485;CAN | |||||||||
| Weight(kg) | ||||||||||
| Cabinet size(W*H*D)[mm] | ||||||||||
| Ingress Protection(IP)Rating | IP65 | |||||||||
| Installation method | Wall Mount | |||||||||
| Model | Queenbee-1P3K | Queenbee-1P3.6K | Queenbee-1P5K | Queenbee-1P6K | ||||||
| PV String Input Data | ||||||||||
| Max.PV Input Power(W) | 3900 | 4680 | 6500 | 7800 | ||||||
| Max.PVInput Voltage(V) | 500 | 500 | 500 | 500 | ||||||
| Rated DCinput voltage(V) | 370(125~500) | 370(125~500) | 370(125~500) | 370(125~500) | ||||||
| Start-up Voltage(V) | 125 | 125 | 125 | 125 | ||||||
| MPPT Voltage Range(V) | 150-425 | 150-425 | 150-425 | 150-425 | ||||||
| Full Load MPPTVoltage Range(V) | 200-425 | 200-425 | 200-425 | 200-425 | ||||||
| Max.Operating PVInput Current(A) | 18+18 | 18+18 | 18+18 | 18+18 | ||||||
| Max.Input Short-Circuit Current(A) | 27+27 | 27+27 | 27+27 | 27+27 | ||||||
| No.of MPP Trackers/No.of Strings MPP Tracker | 2 | 2 | 2 | 2 | ||||||
| Number of MPPT strings per channel | 1+1 | 1+1 | 1+1 | 1+1 | ||||||
| AC Input/Output Data | ||||||||||
| Rated AC Input/Output Active Power(W) | 3000 | 3600 | 5000 | 6000 | ||||||
| Maximum AC output active power(W) | 3300 | 3960 | 5500 | 6600 | ||||||
| Rated AC Input/Output Current(A) | 13.7/13.1 | 16.4/15.7 | 22.8/21.8 | 27.3/26.1 | ||||||
| Max.ACInput/Output Current(A) | 15/14.4 | 18/17.3 | 25/24 | 30/28.7 | ||||||
| Max.ContinuousACPassthrough (grid to load)(A) | 35 | 35 | 35 | 40 | ||||||
| Peak Power (off-grid)(W) | 2 Times of rated power, 10s | |||||||||
| Power Factor Adjustment Range | 0.8 leading-0.8 lagging | |||||||||
| Rated Input/Output Grid Frequency/Range | 50/60Hz;L/N/PE 220/230Vac(Single phase) | |||||||||
| Grid Connection Form | Single Phase | |||||||||
| Total Current Harmonic Distortion THDi | THD<3%(Linear load<1.5%) | |||||||||
| DC Injection Current | <0.5%ln | <0.5%ln | <0.5%ln | <0.5%ln | ||||||
| Efficiency | ||||||||||
| Max.Efficiency | 97.60% | 97.60% | 97.60% | 97.60% | ||||||
| Euro Efficiency | 97.00% | 97.00% | 97.00% | 97.00% | ||||||
| MPPT Efficiency | >99% | >99% | >99% | >99% | ||||||
| security protection | DC Polarity Reverse Connection Protection, AC Output Overcurent Protection, ACOutput Overvoltage Protection, AC Output Short Circuit Protection, Thermal Protection, DC Terminal Insulation Impedance Monitoring, DC Component Monitoring, Ground Fault Current Monitoring, Power Network Monitoring, Island Protection Monitoring, EarthFault Detection, DC Input Switch, Overvoltage Load Drop Protection, Residual Current(RCD)Detection, Surge Protection Level, | |||||||||
| General Data | ||||||||||
| Operating Temperature Range | ’-40~+65°, >45°Derating | |||||||||
| Cooling method | Intelligent air cooling | |||||||||
| Noise | ≤30dB | |||||||||
| Communication Interface | RS485;CAN | |||||||||
| Weight(kg) | ||||||||||
| Cabinet size(W*H*D)[mm] | ||||||||||
| Ingress Protection(IP)Rating | IP65 | |||||||||
| Installation method | Wall Mount | |||||||||
