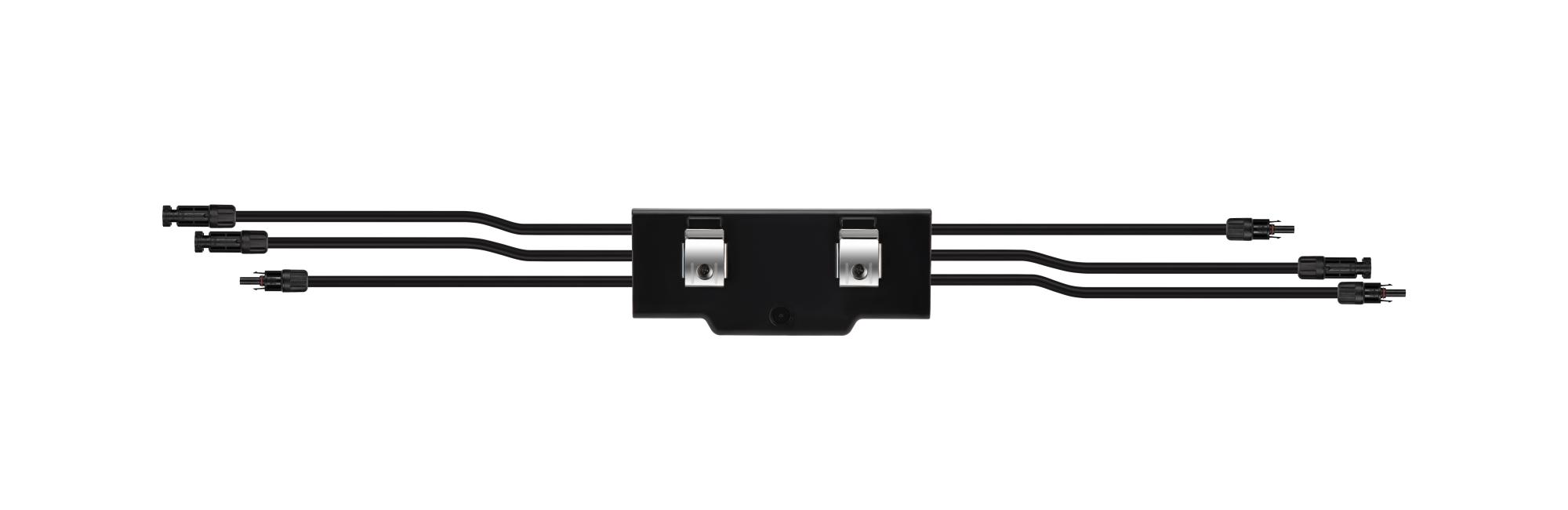

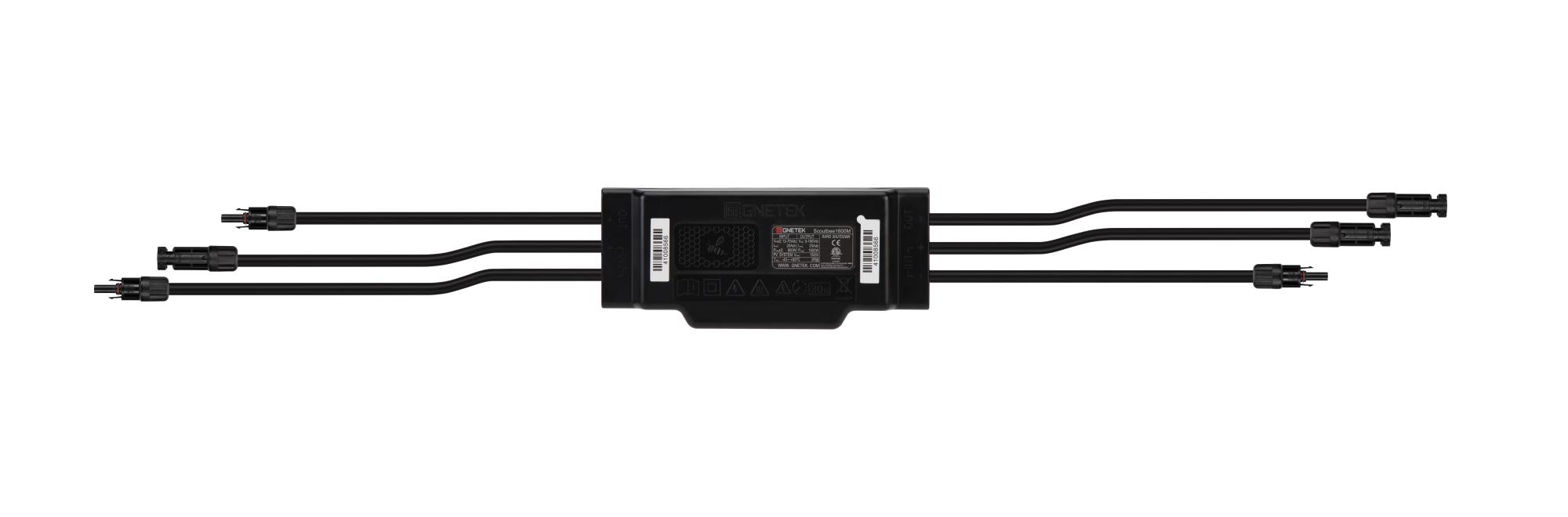

Product Description
Features
Component-level shut-off: specified components are shut off to ensure the safety of the power station and reduce the risk of electrical shock
Automatic shut-off in case of danger: equipment defaults to shut-off mode to protect the personal safety of installers and maintenance personnel
Safe and reliable: equipped with output short-circuit protection function, no risk of high temperature due to any component failure
Convenient installation: can be directly connected to existing photovoltaic power station systems without changing the original wiring
Ultra-long lifespan: designed for a 25-year lifespan, compatible with photovoltaic modules
Features
Component-level shut-off: specified components are shut off to ensure the safety of the power station and reduce the risk of electrical shock
Automatic shut-off in case of danger: equipment defaults to shut-off mode to protect the personal safety of installers and maintenance personnel
Safe and reliable: equipped with output short-circuit protection function, no risk of high temperature due to any component failure
Convenient installation: can be directly connected to existing photovoltaic power station systems without changing the original wiring
Ultra-long lifespan: designed for a 25-year lifespan, compatible with photovoltaic modules
Parameters
|
Model |
Scoutbee1600 Scoutbee1600M |
|
Input Parameters |
|
|
Maximum Input Voltage |
80VDC/80VDC |
|
Operating Voltage Range |
12～80VDC/12～80VDC |
|
Maximum Input Current |
20A/20A |
|
Output Parameters |
|
|
Output Voltage Range |
0～160 VDC |
|
Maximum Output Current |
20 A |
|
Maximum Output Power |
1600 W |
|
Output Voltage after Shutdown |
1.6～2 VDC |
|
Conduction Efficiency |
>99.8% |
|
Default Operating State |
Shutdown |
|
Shutdown Time |
15 seconds |
|
Communication Methods |
|
|
Fast Shutdown |
PLC (Power Line Carrier Communication) |
|
Real-time Monitoring Function |
None Wireless (868M/915M/2.4G) |
|
Others |
|
|
Operating Temperature Relative Humidity |
-40～+85℃ 0～100% |
|
Protection Level |
IP68 |
|
Protection Level |
l5 |
|
Installation Specifications |
|
|
Maximum Series Connection of Modules |
30 units |
|
Input Cable Length |
200 mm & 300 mm |
|
Output Cable Length |
1600 mm |
|
Dimensions |
121×86×20 mm |
|
Weight |
530 g |
|
Connectors (Input/Output) |
Compatible with MC4, Staubli |
|
Standard/Certification |
NEC 2017 (690.12) |
|
Safety |
IEC/EN 62109-1:2010 |
|
EMC |
EN IEC 61000-6-2:2019 |
Parameters
|
Model |
Scoutbee1600 Scoutbee1600M |
|
Input Parameters |
|
|
Maximum Input Voltage |
80VDC/80VDC |
|
Operating Voltage Range |
12～80VDC/12～80VDC |
|
Maximum Input Current |
20A/20A |
|
Output Parameters |
|
|
Output Voltage Range |
0～160 VDC |
|
Maximum Output Current |
20 A |
|
Maximum Output Power |
1600 W |
|
Output Voltage after Shutdown |
1.6～2 VDC |
|
Conduction Efficiency |
>99.8% |
|
Default Operating State |
Shutdown |
|
Shutdown Time |
15 seconds |
|
Communication Methods |
|
|
Fast Shutdown |
PLC (Power Line Carrier Communication) |
|
Real-time Monitoring Function |
None Wireless (868M/915M/2.4G) |
|
Others |
|
|
Operating Temperature Relative Humidity |
-40～+85℃ 0～100% |
|
Protection Level |
IP68 |
|
Protection Level |
l5 |
|
Installation Specifications |
|
|
Maximum Series Connection of Modules |
30 units |
|
Input Cable Length |
200 mm & 300 mm |
|
Output Cable Length |
1600 mm |
|
Dimensions |
121×86×20 mm |
|
Weight |
530 g |
|
Connectors (Input/Output) |
Compatible with MC4, Staubli |
|
Standard/Certification |
NEC 2017 (690.12) |
|
Safety |
IEC/EN 62109-1:2010 |
|
EMC |
EN IEC 61000-6-2:2019 |
Product Documents
